I recently tried 3d printing a threaded design: the nut and bolt demo part from Thingiverse user aubenc. It got me excited about other design applications because the threads worked perfectly and all overhangs of the threads printed no problem. Many of my designs are sparked by a simple idea and threads seemed like a good candidate to use in a new design.

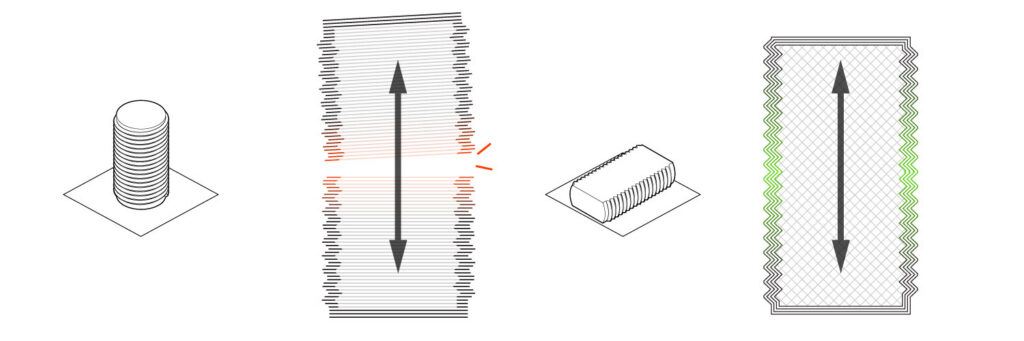

I wasn’t really sure what type of product I would use threaded parts for, but I knew that I wanted to incorporate a flat on the threads to print lengthwise on the bed. This makes each layer large, giving it the most possible surface contact between layers The part also can’t be pulled apart by the tension caused by tightening a nut, because the shell is continuous lengthwise down the threads.

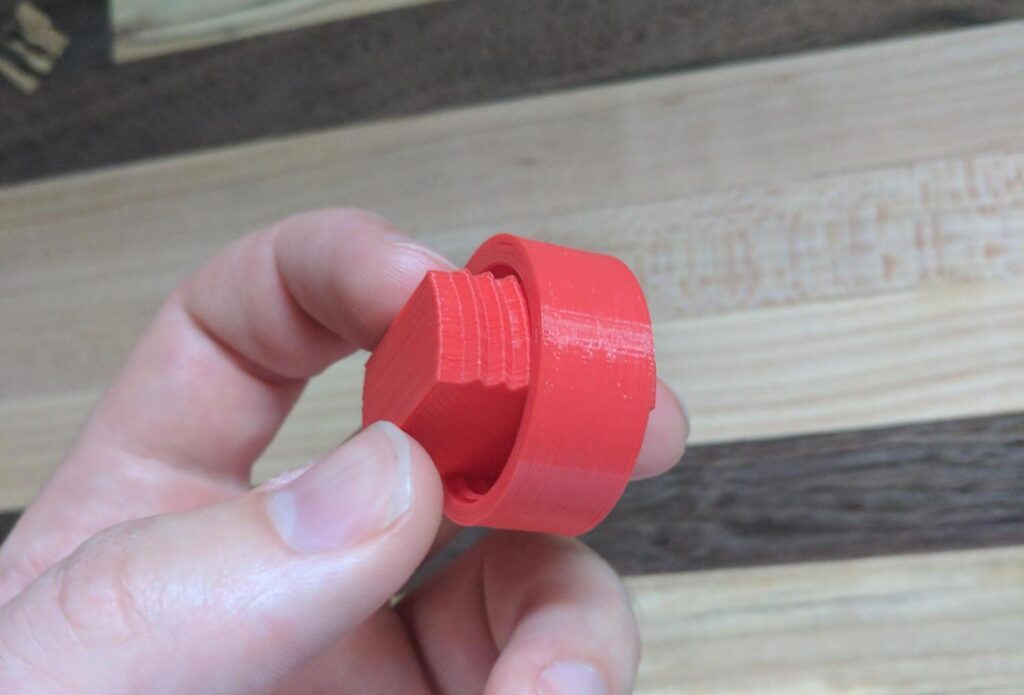

Making a crude test print proved the idea of partial threads worked and helped facilitate idea generation as I sketched thumbnails on paper.

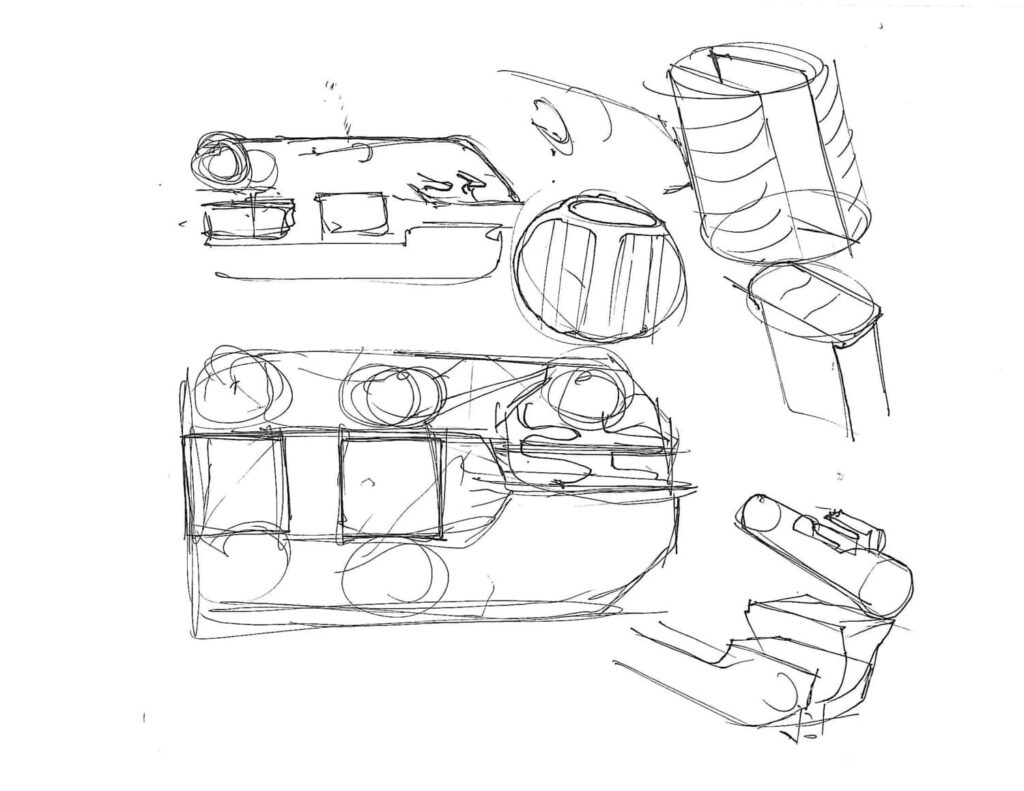

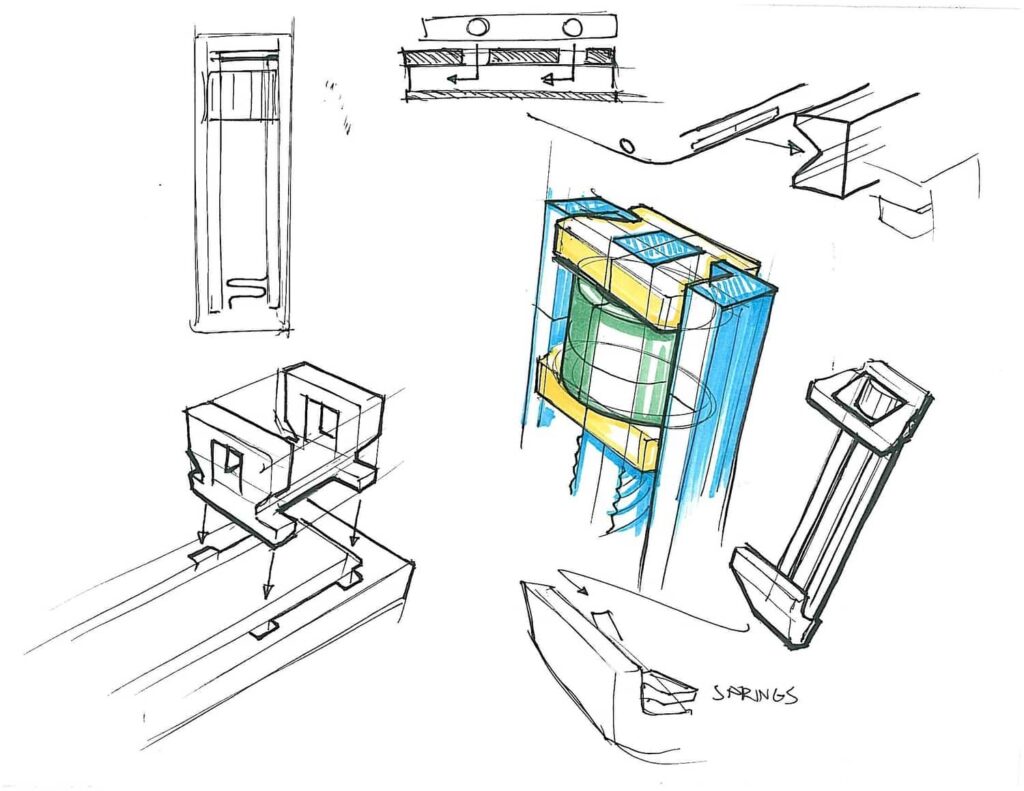

Sketching designs for threaded moving parts, I came up with this clamp, a phone mount, and a few others that I might release in the future. One major discovery from sketching was that if a rod was partially threaded, the remaining surfaces could be used as a fastener or sliding surface in a slot. If the mechanism actually worked it would have lots of new and interesting 3d printed mechanical applications.

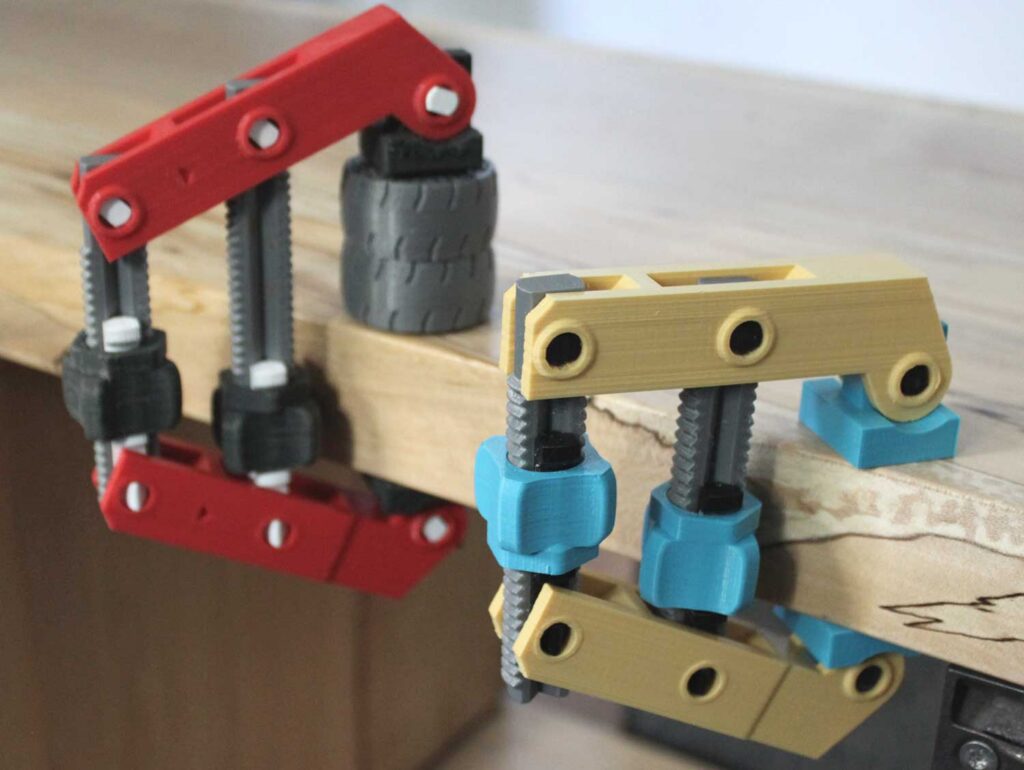

I decided to focus on a 3d printed clamp because it was a straightforward use of a sliding thread mechanism and it is a general purpose product that is easy to play around with. However, an added challenge with a clamp is strengthening components so that they can withstand at least some force.
I could have made a simple, quick printing clamp, but there are already plenty of these designs available. I wanted to use this construction for a 3D printed clamp concept that was more interesting, that people want to try just to see how it works.
I researched different woodworking clamp types and ultimately landed the hand-screw clamp. The thread knobs are located on the inside rather than the outside to make it more compact. This makes it harder to tighten, but since this clamp was so small, I thought it was an OK trade-off.
My goal for the clamp was to try and bend a bottle cap, it was a little too much for my first prototype, but seemed doable. Plus it would be cool to bend metal with a 3d print!

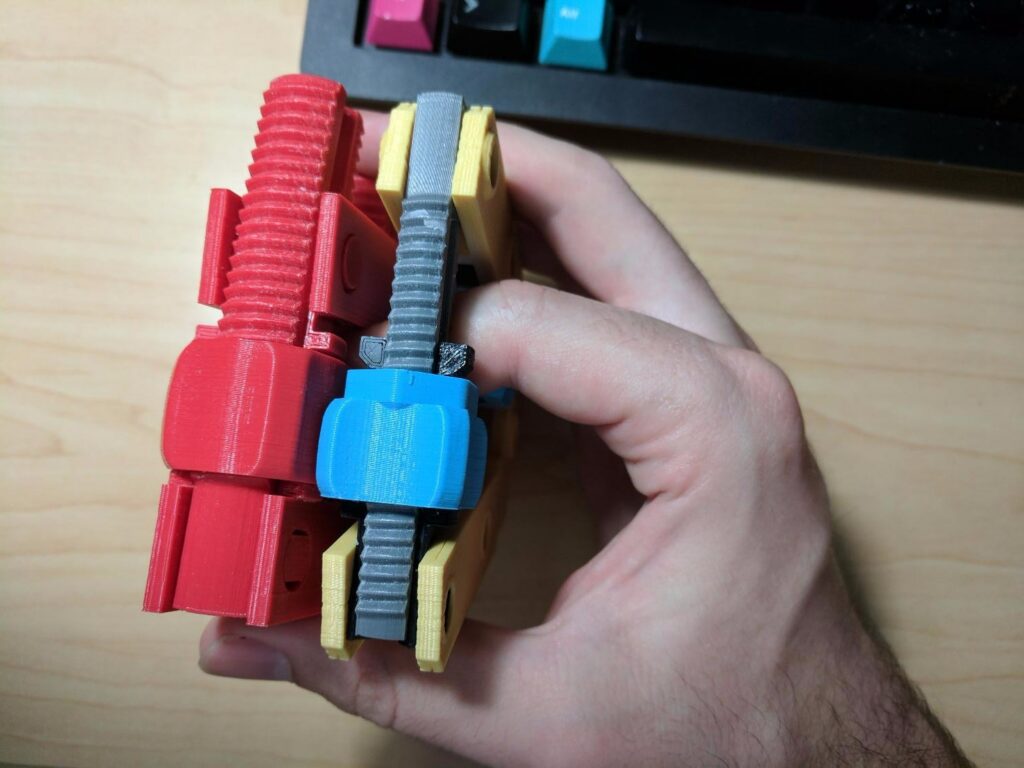

Above is the first working prototype on the left compared to the final design on the right. the threaded portion got way thinner since it was very strong for the type of stress it was under. The jaws, yellow on the right model, needed to be reinforced since they were bowing when clamped. The pins inside the knob needed to be strengthened as well as they were the first thing to snap. Below are several iterations with the first on the left.

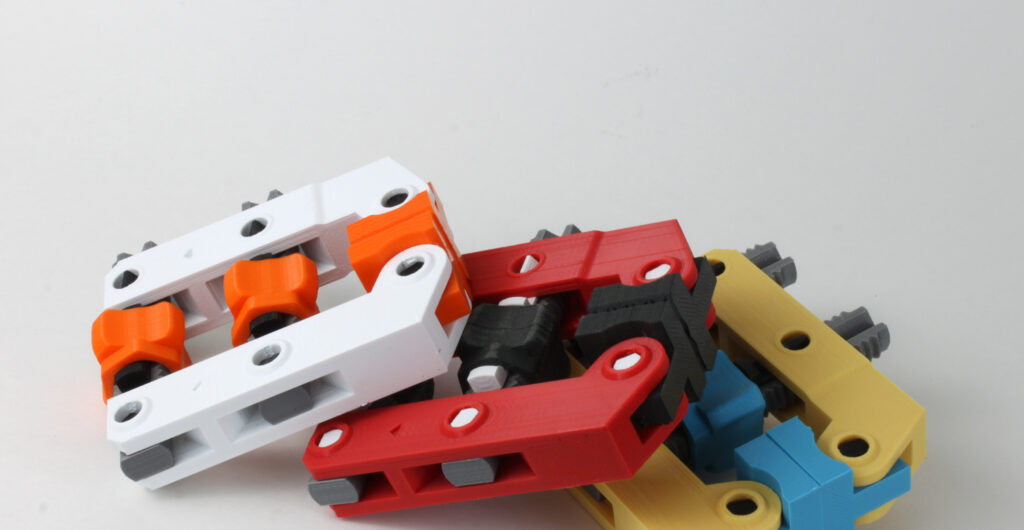

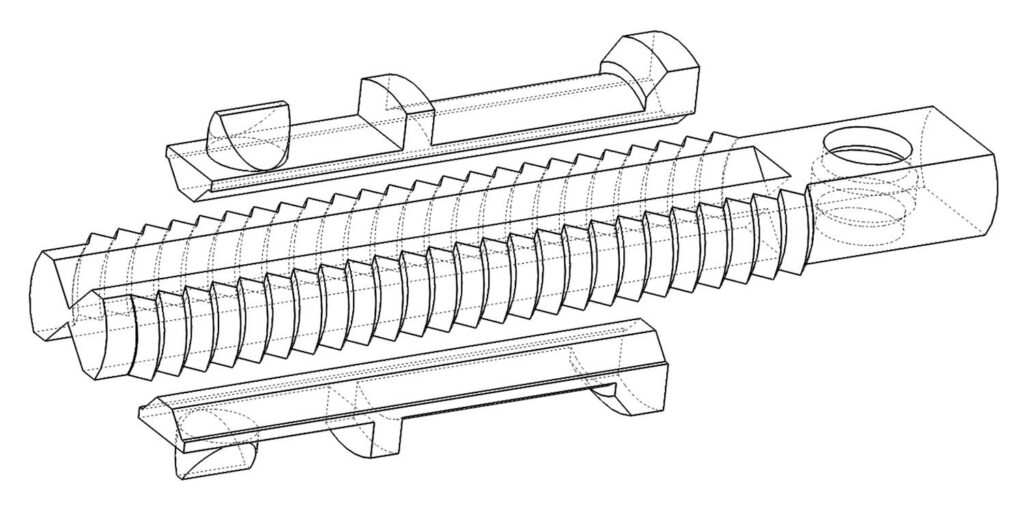

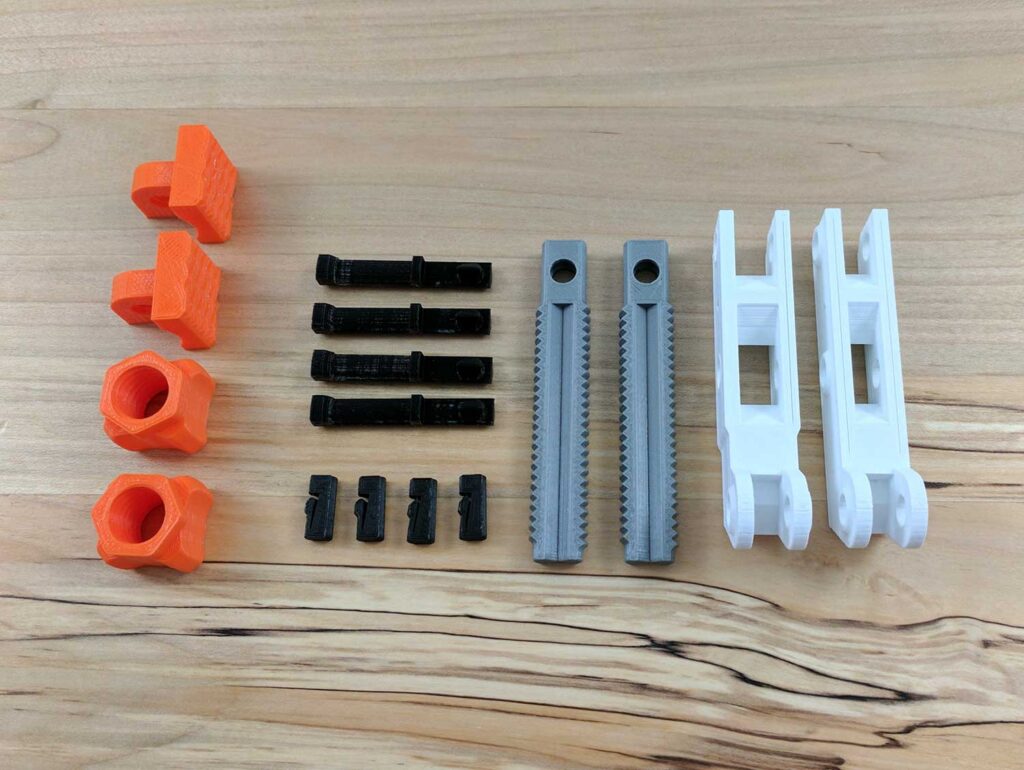

The threaded rods print on on their side on the build plate. This is a much stronger orientation because the grain of the plastic shells is much longer and you don’t have to rely as much on how well the layers are fused together. Removing parts of the thread didn’t compromise their function and allowed me to place a track for a sliding hinge.

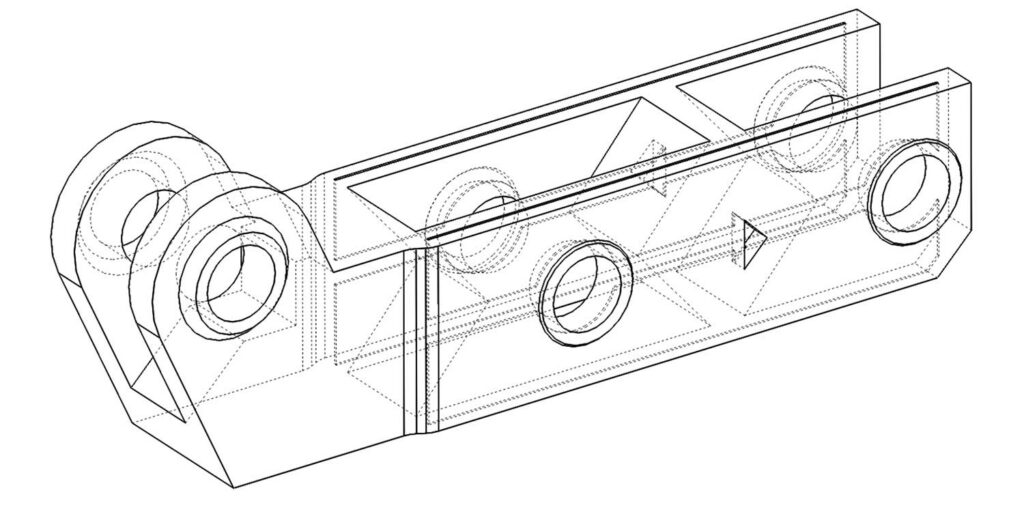

The jaws have a vertical slot cut into them to increase the shells of the part, creating more “grain” that runs along the part. One of the jaws sticks out more, because that is where the sliding hinges mount. The arrows on the side of the jaw indicates which way to turn the knob to expand or compress that part of the jaw.

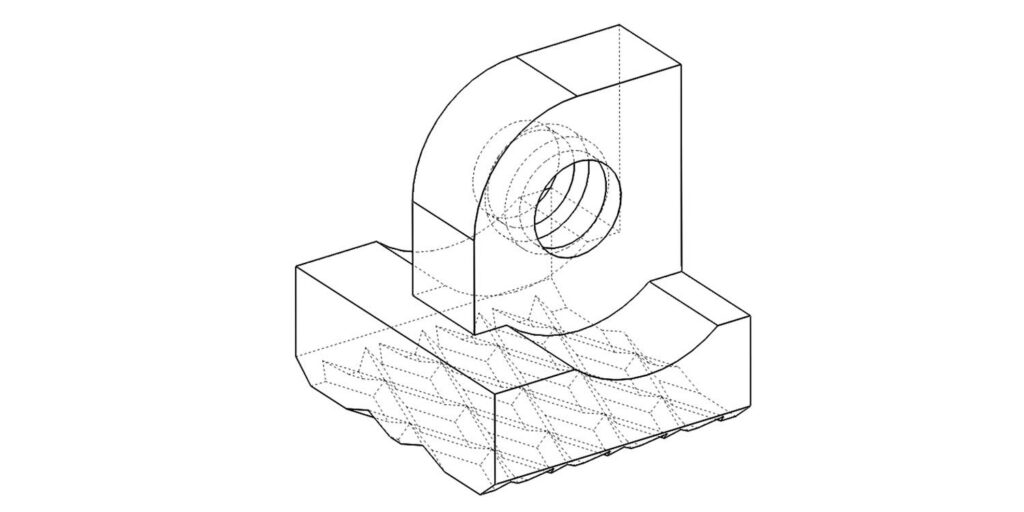

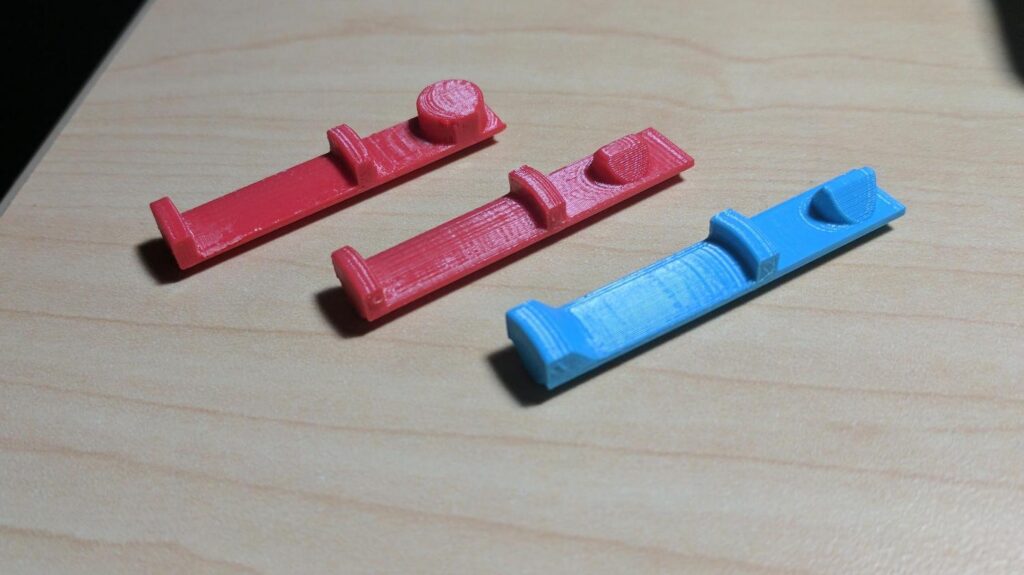

The pads have a reversible design: one direction locks the jaw and the other allows the jaw to rotate. The hole expands inside so that the pin can snap into it and stay in place.

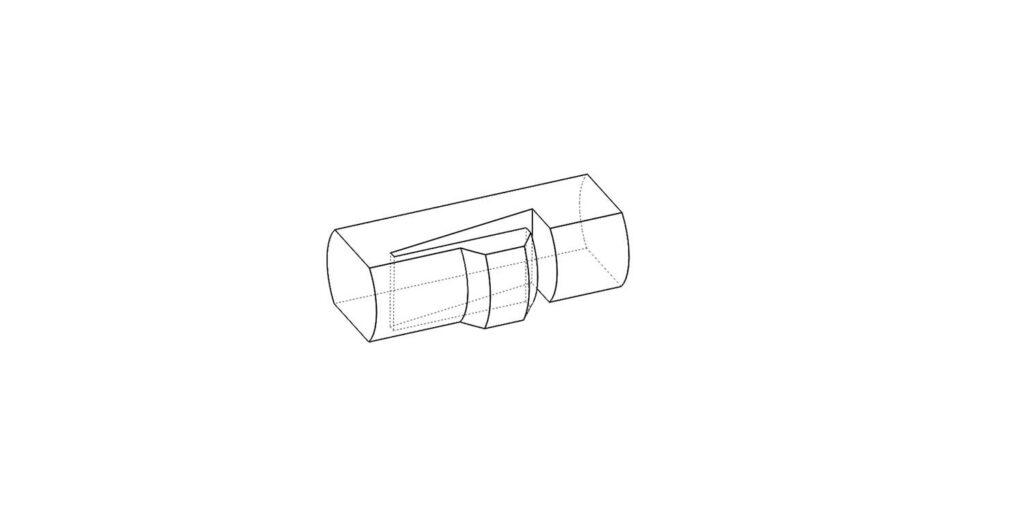

The pin has flat sides, similar to the threaded part. It uses a thin flexible projection to snap into place.
